功能 #4933

DU增加指标上报

由 钱 伯宁 在 2 个月 之前添加. 更新于 15 天 之前.

状态:
转测试
优先级:
一般
指派给:
杨 凯
开始日期:
2026-03-02
计划完成日期:
% 完成:

0%

预期时间:

描述

消息结构调整：
version:10
typedef struct yzmmCellData {
uint16_t cellId; // NR Cell Global Identifier
uint16_t ueNum;
int resIdleRate;[飞行中]删除 这个不用了
uint16_t dlResRate;[坏笑] // 下行RB利用率[0,100]% 无效值 255
uint16_t ulResRate;[坏笑] //上行RB利用率[0,100]% 无效值 255
uint32_t tput2; // 0- UL , 1-DL
uint32_t phyTPut2; //kbps, 0- UL , 1-DL {
uint16_t ueId; // [0,64]
uint8_t bler2; // [0,100] %
uint8_t mcs2; // [0, 28]
/*MIMO Report:Scheduing PMI,RI MIMO 预编码上报：调度的PMI、RI*/
uint8_t schPmi; // dl-sch-pmi[0~63]
uint8_t schRi; // dl-sch-ri [1~4] [No]不用了
uint32_t tput2; // kbps
short rsrp; // [-150, -30]
short cqi; // [0,15]
short ulSinr; //[-30,-40] dB
short reserved; //8字节对齐

uint32_t    phyTPut[2];//kbps,  0- UL , 1-DL
    /*begin:due to QingHua Project ,add  KPI by ld 20240122*/
    /*Average MCS  平均MCS统计上报*/
    float avgMcs[2];    // ul-mean-mcs dl-mean-mcs
    /*UL PMI,RI from SRS   SRS测量上报*/
    uint8_t ulPmi;  // ul-pmi[0~63]
    uint8_t ulRi;   // ul-ri [1~4]
    /*DL PMi,RI Measurement Report    下行PMI，RI的测量上报*/
    uint8_t dlPmi;  // dl-pmi [0~63]
    uint8_t dlRi;   // dl-ri [0~3]
    uint16_t schCount[2];   // ul-sch-num dl-sch-num
/* bufferSize: bo after recieve packet from cu; bo： RLC buffer净荷大小：buffer size，bo*/
    int32_t ueBufferSize; // rlc-buf-sz
    int32_t ueBo;   // rlc-bo-sz
    /*end*/
/*begin:due to QingHua Project ,add  KPI by mjy 20240122*/
    float  numRbAverage[2]; //0:ul,1:dl. 用户分配的上下行RB的平均数量  ul-mean-rb-num dl-mean-rb-num
    uint16_t    ulTbTxCntr[4]; //0:新传, 1:一次重传, 2:二次重传, 3:三次重传 ul-new-trans-rate ul-retrans-x-rate
    uint16_t    dlTb0TxCntr[4]; //0:新传, 1:一次重传, 2:二次重传, 3:三次重传 dl-new-trans-rate dl-retrans-x-rate
    uint8_t    phr;              //用户上报的phr  ul-phr
    uint8_t    usedfreeRate;//时域调度占比，1s内用户分配slot(上下行时隙都算)占slot总数比例 （0-100）slot-used-rate
    uint16_t    ta;              //用户的上行ta   ul-ta
    int32_t    Nta;               //用户的上行Nta,单位ns  ul-nta
    int16_t    pathloss; //calc pathloss from phr;
    uint8_t     dlSchRank; [坏笑] //下行调度流数[1,4] ，无效值 255
    uint8_t     ulSchRank; [坏笑]//上行调度流数[1,4] ，无效值 255
    uint8_t    slotBler[20];[坏笑]//slot0 误码率（%）slot1 误码率（%）...slot19 误码率（%）[0,100]%，无效值 255
    int8_t     rev1[4];[坏笑] //占位
    /*end*/
}

文件

20260330-112406.jpg (164 KB) 20260330-112406.jpg 马 党旗, 2026-03-30 11:24

历史记录

#1

由 钱 伯宁 更新于 2 个月 之前

  • 状态 从 新建 变更为 进行中
#2

由 钱 伯宁 更新于 2 个月 之前

钱 伯宁 写到：

消息结构调整：
version:10
typedef struct yzmmCellData {
uint16_t cellId; // NR Cell Global Identifier
uint16_t ueNum;
int resIdleRate;[飞行中]删除 这个不用了
uint16_t dlResRate;[坏笑] // 下行RB利用率[0,100]% 无效值 255
uint16_t ulResRate;[坏笑] //上行RB利用率[0,100]% 无效值 255
uint32_t tput2; // 0- UL , 1-DL
uint32_t phyTPut2; //kbps, 0- UL , 1-DL

//qinghua Indicator reporting
int16_t subBandInterfPower273;//子带干扰功率
uint16_t Reserverd3;

/*gongfang param setting-zxh*/
api_pa_get_t paData;
api_coordinates_info corData;
/*end*/
yzmmUeData ue[YZMM_KPI_MAX_UE_NUM_PER_CELL];
}YzmmCellData;
typedef struct yzmmUeData {
uint16_t ueId; // [0,64]
uint8_t bler2; // [0,100] %
uint8_t mcs2; // [0, 28]
/*MIMO Report:Scheduing PMI,RI MIMO 预编码上报：调度的PMI、RI*/
uint8_t schPmi; // dl-sch-pmi[0~63]
uint8_t schRi; // dl-sch-ri [1~4] [No]不用了
uint32_t tput2; // kbps
short rsrp; // [-150, -30]
short cqi; // [0,15]
short ulSinr; //[-30,-40] dB
short reserved; //8字节对齐

uint32_t phyTPut2;//kbps, 0- UL , 1-DL
/*begin:due to QingHua Project ,add KPI by ld 20240122*/
/*Average MCS 平均MCS统计上报*/
float avgMcs2; // ul-mean-mcs dl-mean-mcs
/*UL PMI,RI from SRS SRS测量上报*/
uint8_t ulPmi; // ul-pmi[0~63]
uint8_t ulRi; // ul-ri [1~4]
/*DL PMi,RI Measurement Report 下行PMI，RI的测量上报*/
uint8_t dlPmi; // dl-pmi [0~63]
uint8_t dlRi; // dl-ri [0~3]
uint16_t schCount2; // ul-sch-num dl-sch-num

/* bufferSize: bo after recieve packet from cu; bo： RLC buffer净荷大小：buffer size，bo*/
int32_t ueBufferSize; // rlc-buf-sz
int32_t ueBo; // rlc-bo-sz
/*end*/

/*begin:due to QingHua Project ,add KPI by mjy 20240122*/
float numRbAverage2; //0:ul,1:dl. 用户分配的上下行RB的平均数量 ul-mean-rb-num dl-mean-rb-num
uint16_t ulTbTxCntr4; //0:新传, 1:一次重传, 2:二次重传, 3:三次重传 ul-new-trans-rate ul-retrans-x-rate
uint16_t dlTb0TxCntr4; //0:新传, 1:一次重传, 2:二次重传, 3:三次重传 dl-new-trans-rate dl-retrans-x-rate
uint8_t phr; //用户上报的phr ul-phr
uint8_t usedfreeRate;//时域调度占比，1s内用户分配slot(上下行时隙都算)占slot总数比例 （0-100）slot-used-rate
uint16_t ta; //用户的上行ta ul-ta
int32_t Nta; //用户的上行Nta,单位ns ul-nta
int16_t pathloss; //calc pathloss from phr;
uint8_t dlSchRank; [坏笑] //下行调度流数[1,4] ，无效值 255
uint8_t ulSchRank; [坏笑]//上行调度流数[1,4] ，无效值 255
uint8_t slotBler20;[坏笑]//slot0 误码率（%）slot1 误码率（%）...slot19 误码率（%）[0,100]%，无效值 255
int8_t rev14;[坏笑] //占位
/*end*/
}

type DuUePeriodDataV10 struct {
Crnti uint16 // Crnti
Bler [2]uint8 // [0,100] % ul-bler dl-bler
Mcs [2]uint8 // [0, 28]
SchPmi uint8 // dl-sch-pmi
SchRi uint8 // dl-sch-ri(不需要显示)

TPut [2]int32 // kbps  ul-tput  dl-tput
Rsrp     int16 // [-150, -30]     ul-rsrp
    Cqi      int16 // [0,15]
    UlSinr   int16 // [-30,-40] dB    ul-sinr
    Reserved int16 //占位
PhyTput [2]uint32 // kbps,  0- UL , 1-DL
AvgMcs [2]float32 // ul-mean-mcs dl-mean-mcs
UlPmi    uint8     // ul-pmi
    UlRi     uint8     // ul-ri
    DlPmi    uint8     // dl-pmi
    DlRi     uint8     // dl-ri
    SchCount [2]uint16 // ul-sch-num dl-sch-num
UeBufferSize int32 // rlc-buf-sz
    UeBo         int32 // rlc-bo-sz
NumRbAverage [2]float32 // 0:ul,1:dl. 用户分配的上下行RB的平均数量  ul-mean-rb-num dl-mean-rb-num
UlTbTxCntr [4]int16 // 0:新传, 1:一次重传, 2:二次重传, 3:三次重传 ul-new-trans-rate ul-retrans-x-rate
DlTb0TxCntr [4]int16 // 0:新传, 1:一次重传, 2:二次重传, 3:三次重传 dl-new-trans-rate dl-retrans-x-rate
Phr          uint8  //用户上行phr
    UsedfreeRate uint8  // 100ms内，用户分配的slot数占总slot数的比例 （0-100,表示x%） 时域调度占比，100ms内用户分配slot(上下行时隙都算)占slot总数比例 （0-100）
    Ta           uint16 //用户上行ta
    NTa          int32  //abs_ta
PathLoss  int16     //路损(单位:dBm)
    DlSchRank uint8     //下行调度流数[1,4]，无效值255
    UlSchRank uint8     //上行调度流数[1,4]，无效值255
    SlotBler  [20]uint8 //slot0误码率()...slot19误码率(),无效值255
}
#3

由 钱 伯宁 更新于 大约 2 个月 之前

  • 项目 从 3.0基站产品测试 变更为 网管产品
  • 指派给 从 钱 伯宁 变更为 马 党旗
  • 发现问题版本 已删除 (Rel_3.2.2)
  • 目标解决问题版本 已删除 (Rel_3.2.2)
  • 问题归属 已删除 (DU, gnb_agent)

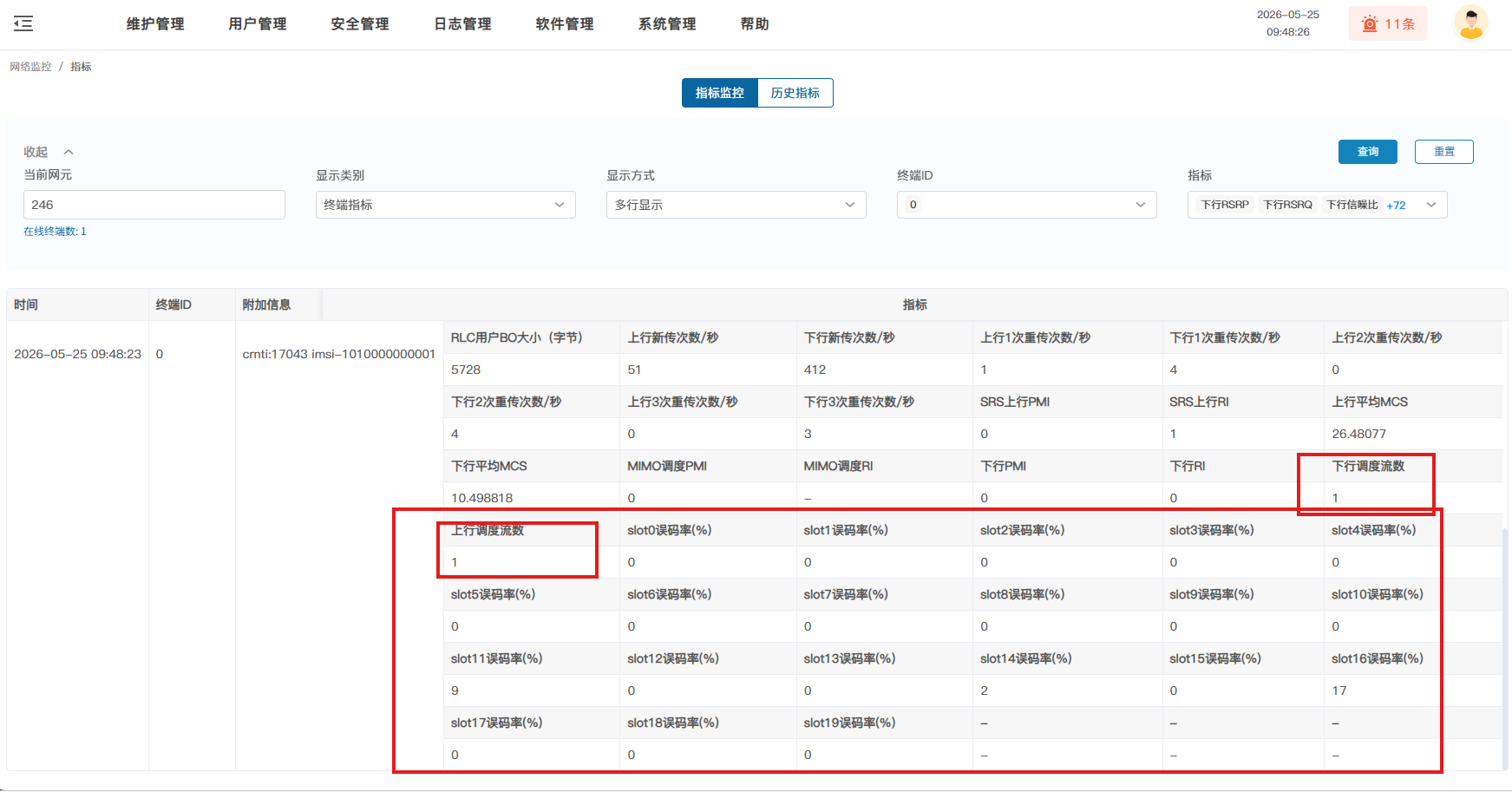

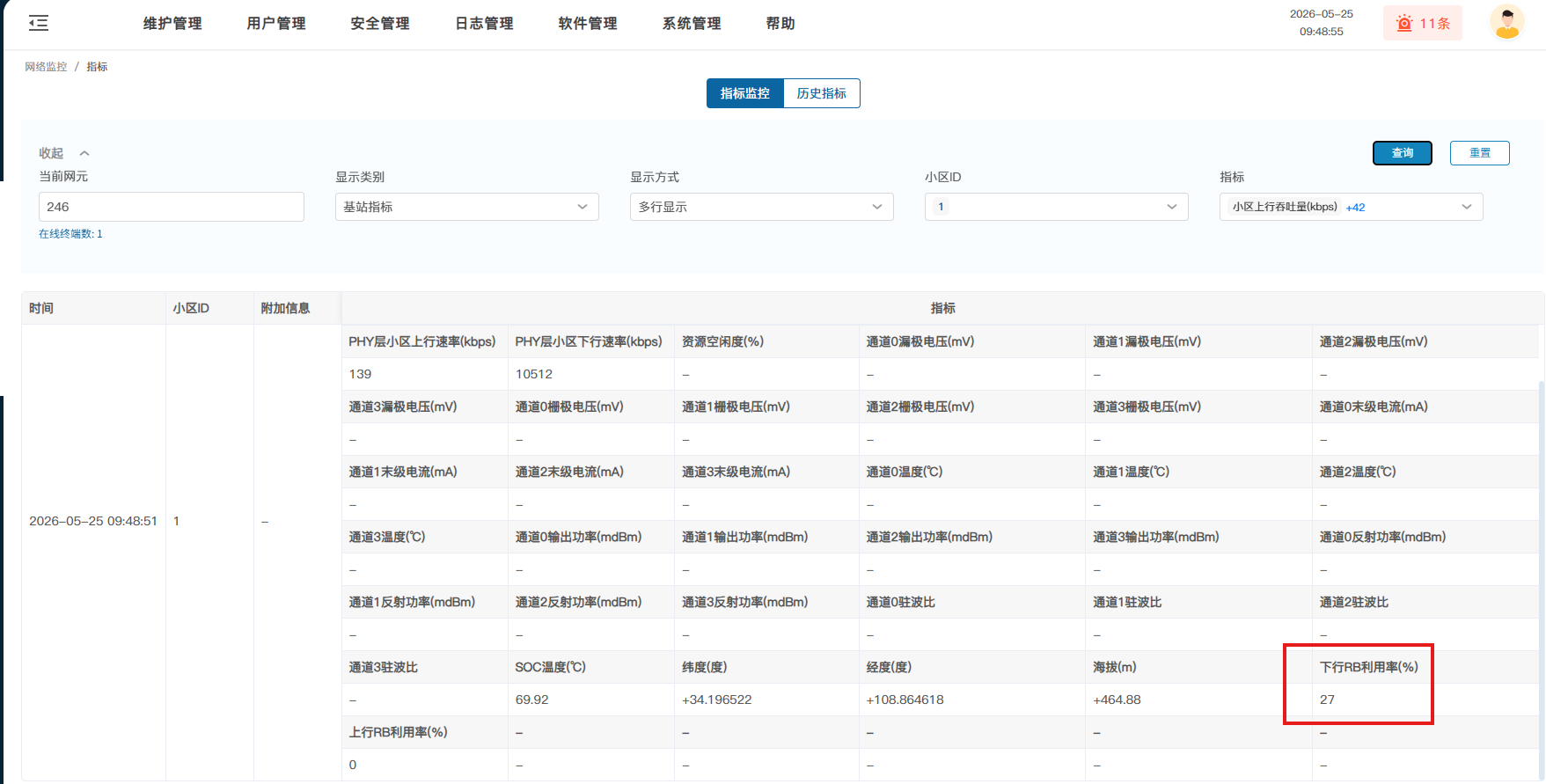

3.2.2新增DU指标：
"dl-res-rate" //下行RB利用率
"ul-res-rate" //上行RB利用率
"dl-sch-rank" //下行调度流数
"ul-sch-rank" //上行调度流数
"slot-bler-%d" //slotX误码率 备注：目前%d为0~19

#4

由 马 党旗 更新于 大约一个月 之前

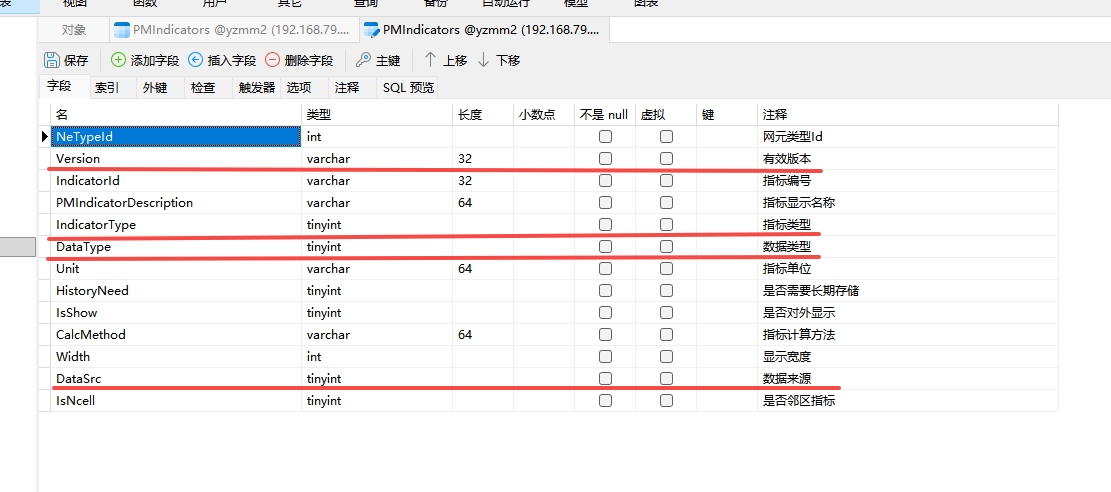

需要在指标定义表（PMIndicators）中进行定义。
