网管产品

已完成小工具并自验成功

分配枚举ID：
“TTI配置校验”、“TTI=1,其他有风险”、“基站软件看门狗开关校验”、“基站软件看门狗未打开”、“配置巡检开关校验”、“配置巡检开关未打开”、“DU用户面日志等级校验”、“DU用户面日志等级应不记录”、“CU用户面日志等级校验”、“CU用户面日志开关应关闭”、“信令面日志等级校验”、“信令面日志等级不应低级别”、“FAPI抓包开关校验”、“FAPI抓包开关应关闭”、“DMRS配置校验”、“DMRS 1+1,其他有风险”、“CU周期测量上报开关校验”、“CU周期测量上报开关应关闭”、“通道配置开关校验”、“通道配置开关不能设置全关闭”
分配告警ID：
“风险配置检查异常”

分配告警ID：
“风险配置检查异常” ： 130
分配枚举ID：

• ('TTI_CONFIGURATION_VALIDATION', 'TTI配置校验'); 302
• ('TTI_EQUALS_1_OTHERS_HAVE_RISK', 'TTI=1,其他有风险'); 303
• ('BASE_STATION_SOFTWARE_WATCHDOG_SWITCH_VALIDATION', '基站软件看门狗开关校验'); 304
• ('BASE_STATION_SOFTWARE_WATCHDOG_NOT_ENABLED', '基站软件看门狗未打开'); 305
• ('CONFIGURATION_INSPECTION_SWITCH_VALIDATION', '配置巡检开关校验'); 306
• ('CONFIGURATION_INSPECTION_SWITCH_NOT_ENABLED', '配置巡检开关未打开'); 307
• ('DU_USER_PLANE_LOG_LEVEL_VALIDATION', 'DU用户面日志等级校验'); 308
• ('DU_USER_PLANE_LOG_LEVEL_SHOULD_BE_NO_LOGGING', 'DU用户面日志等级应不记录'); 309
• ('CU_USER_PLANE_LOG_LEVEL_VALIDATION', 'CU用户面日志等级校验'); 310
• ('CU_USER_PLANE_LOG_SWITCH_SHOULD_BE_OFF', 'CU用户面日志开关应关闭'); 311
• ('SIGNALING_PLANE_LOG_LEVEL_VALIDATION', '信令面日志等级校验'); 312
• ('SIGNALING_PLANE_LOG_LEVEL_SHOULD_NOT_BE_LOW_LEVEL', '信令面日志等级不应低级别'); 313
• ('FAPI_PACKET_CAPTURE_SWITCH_VALIDATION', 'FAPI抓包开关校验'); 314
• ('FAPI_PACKET_CAPTURE_SWITCH_SHOULD_BE_OFF', 'FAPI抓包开关应关闭'); 315
• ('DMRS_CONFIGURATION_VALIDATION', 'DMRS配置校验'); 316
• ('DMRS_1_PLUS_1_OTHERS_HAVE_RISK', 'DMRS 1+1,其他有风险'); 317
• ('CU_PERIODIC_MEASUREMENT_REPORTING_SWITCH_VALIDATION', 'CU周期测量上报开关校验'); 318
• ('CU_PERIODIC_MEASUREMENT_REPORTING_SWITCH_SHOULD_BE_OFF', 'CU周期测量上报开关应关闭'); 319
• ('CHANNEL_CONFIGURATION_SWITCH_VALIDATION', '通道配置开关校验'); 320
• ('CHANNEL_CONFIGURATION_SWITCH_CANNOT_BE_SET_TO_ALL_OFF', '通道配置开关不能设置全关闭'); 321

Netconf消息接口：
Request: <get><target><running/></target><operation>exec</operation><all xmlns='http://www.yunzhiruantong.com/yzrt/yzmm/all/action/softwaremanage'>{"type":"riskCfgCheck","extension":"","value":""}</all></get>
Response: <data>{"result":"success","data":"{\"304\":{\"descId\":305,\"xpaths\":[\"/yzmm/gnb/agent/conf.yaml:watchdog/onboot\"]},\"306\":{\"descId\":307,\"xpaths\":[\"/gnb-nms:GNB-NMS/LOCAL_CONFIG/INSPECTION/INSPECTION_SWITCH\"]}}","code":0}</data>
增加错误码：23018 //风险配置检查初始化失败

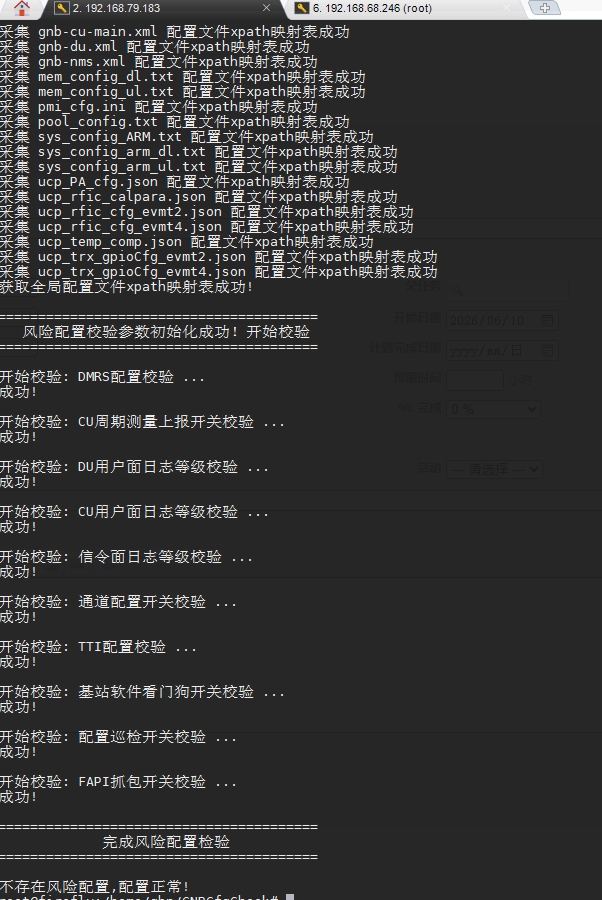

可支持联调

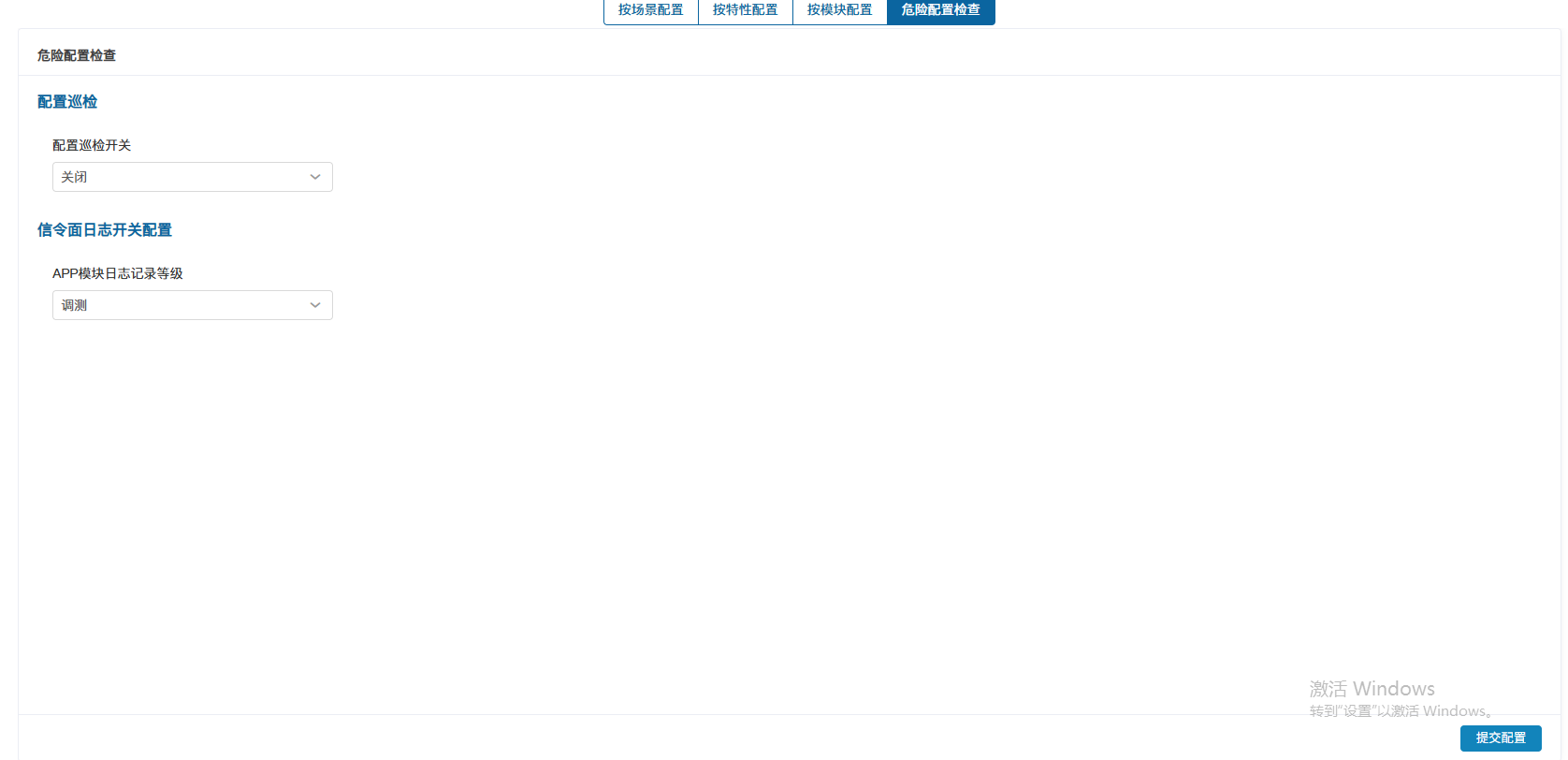

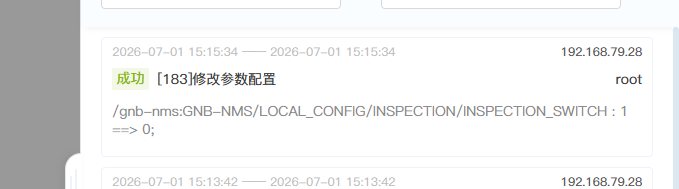

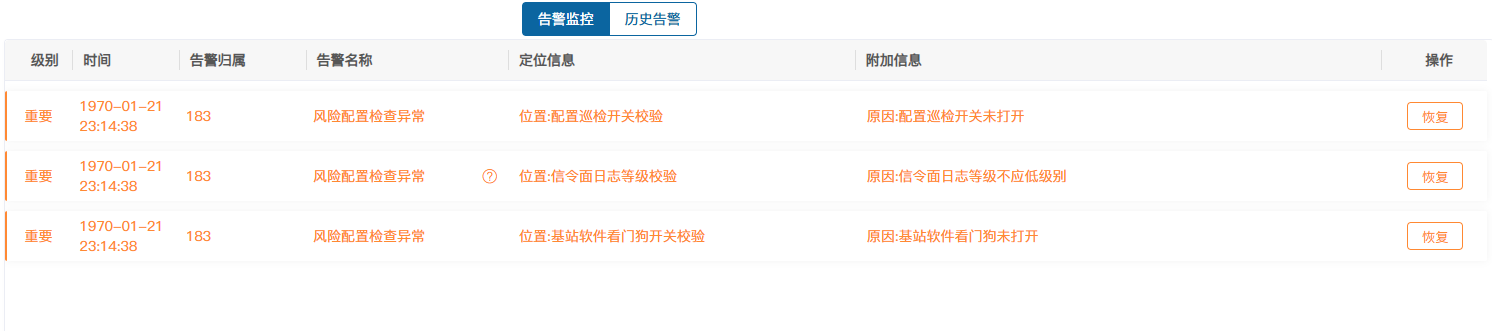

如图所示，网管已支持小工具的调用，告警也可正常上报

存在问题为：需要将/yzmm/gnb/agent/conf.yaml:watchdog/onboot 放在参数显示主控中。

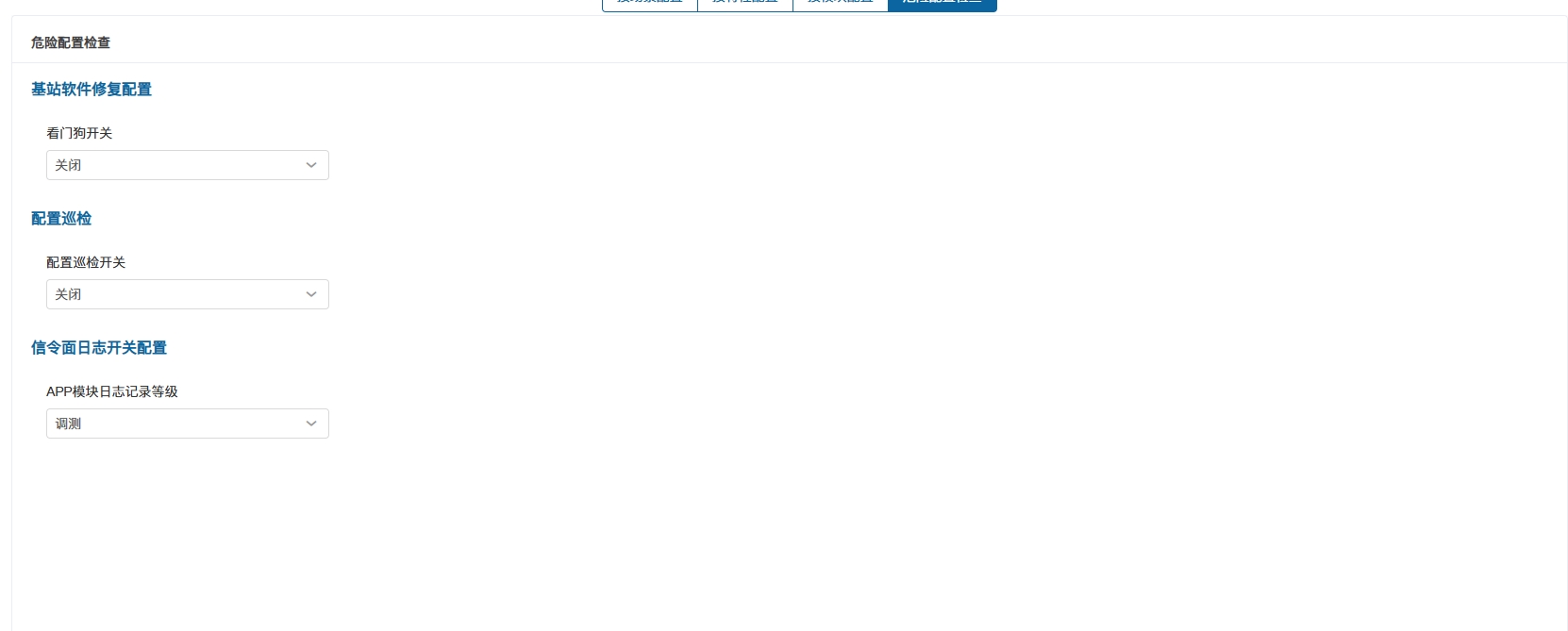

显示主控文件已增加看门狗开关，测试环境192.168.79.183

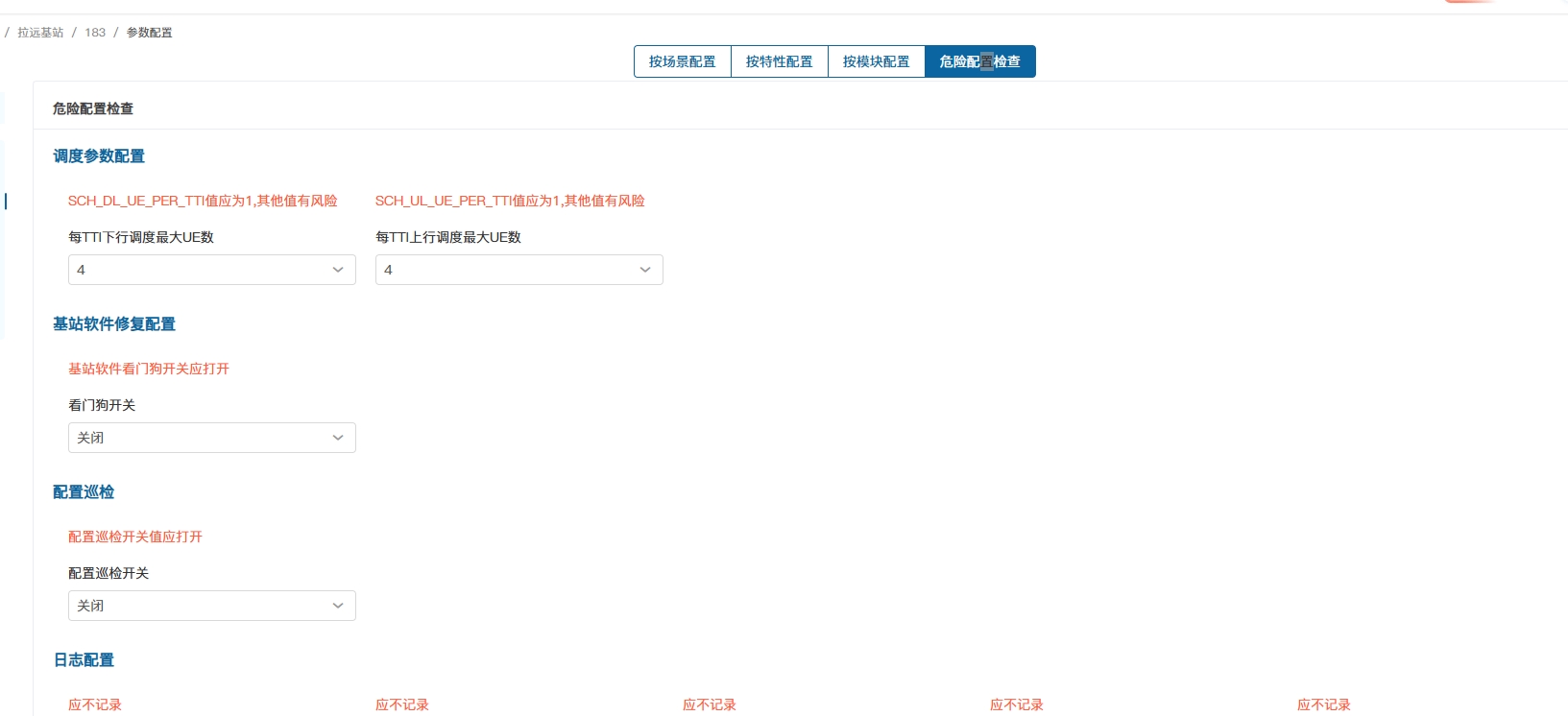

联调完成，参照网管界面开发LMT风险配置界面

调整接口：
send req: <get><target><running/></target><operation>exec</operation><all xmlns='http://www.yunzhiruantong.com/yzrt/yzmm/all/action/softwaremanage'>{"type":"riskCfgCheck","extension":"","value":""}</all></get>
RecvResp.RawReply is: <data>{"result":"success","data":"{\"302\":{\"/du-cell:DU-CELL/SCHEDULER_CONFIG/SCH_DL_UE_PER_TTI\":{\"name\":\"每TTI下行调度最大UE数\",\"desc\":\"SCH_DL_UE_PER_TTI值应
为1,其他值有风险\",\"range\":{\"1\":\"1\",\"2\":\"2\",\"3\":\"3\",\"4\":\"4\",\"5\":\"5\",\"6\":\"6\",\"7\":\"7\",\"8\":\"8\"},\"val\":\"4\"},\"/du-cell:DU-CELL/SCHEDULER_CONFIG/SCH_UL_UE_PER_TTI\":{\"name\":\"每TTI上行调度最大UE数\",\"desc\":\"SCH_UL_UE_PER_TTI值应为1,其他值有风险\",\"range\":{\"1\":\"1\",\"2\":\"2\",\"3\":\"3\",\"4\":\"4\",\"5\":\"5\",\"6\":\"6\",\"7\":\"7\",\"8\":\"8\"},\"val\":\"4\"}},\"304\":{\"/gnb-nms:GNB-NMS/LOCAL_CONFIG/GNB_REPAIR/WATCH_DOG\":{\"name\":\"基站软件看门狗开关\",\"desc\":\"基站软件看门狗开关应打开\",\"range\":{\"false\":\"关闭\",\"true\":\"打开\"},\"val\":\"false\"}},\"306\":{\"/gnb-nms:GNB-NMS/LOCAL_CONFIG/INSPECTION/INSPECTION_SWITCH\":{\"name\":\"配置巡检开关\",\"desc\":\"配置巡检开关值应打开\",\"range\":{\"0\":\"关
闭\",\"1\":\"打开\"},\"val\":\"0\"}},\"308\":{\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/CONFIG_MAC_CELL_MODULE\":{\"name\":\"CONFIG_MAC_CELL模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/CONFIG_MAC_UE_MODULE\":{\"name\":\"CONFIG_MAC_UE模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/CONFIG_RLC_CELL_MODULE\":{\"name\":\"CONFIG_RLC_CELL模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警
告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/CONFIG_RLC_UE_MODULE\":{\"name\":\"CONFIG_RLC_UE模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_APP_UE_MODULE\":{\"name\":\"DUAPP_APP_UE模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_COMMON_MODULE\":{\"name\":\"DUAPP_COMMON模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_EGTP_MODULE\":{\"name\":\"DUAPP_EGTP模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_F1AP_MODULE\":{\"name\":\"DUAPP_F1AP模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_F1U_MODULE\":{\"name\":\"DUAPP_F1U模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警
告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_FAST_PKT_MODULE\":{\"name\":\"DUAPP_FAST_PKT模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_MGR_MODULE\":{\"name\":\"DUAPP_MGR模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_NRUP_MODULE\":{\"name\":\"DUAPP_NRUP模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警
告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_OAM_AGENT_MODULE\":{\"name\":\"DUAPP_OAM_AGENT模块\",\"desc\":\"应不记
录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_RRM_MODULE\":{\"name\":\"DUAPP_RRM模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_SCTP_MODULE\":{\"name\":\"DUAPP_SCTP模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/DUAPP_UDP_MODULE\":{\"name\":\"DUAPP_UDP模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_ACCESS_MODULE\":{\"name\":\"MAC_ACCESS模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_COMME_MODULE\":{\"name\":\"MAC_COMME模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"4\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_ACK_CQI_MODULE\":{\"name\":\"MAC_DL_ACK_CQI模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_AMC_MODULE\":{\"name\":\"MAC_DL_AMC模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_DCI_INFO_MODULE\":{\"name\":\"MAC_DL_DCI_INFO模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_MACCE_MODULE\":{\"name\":\"MAC_DL_MACCE模块\",\"desc\":\"应不记录
\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_PWR_MODULE\":{\"name\":\"MAC_DL_PWR模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_RESALLOC_MODULE\":{\"name\":\"MAC_DL_RESALLOC模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误
\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_SCH_MODULE\":{\"name\":\"MAC_DL_SCH模块\",\"desc\":\"应不
记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_DL_TB_MODULE\":{\"name\":\"MAC_DL_TB模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_AMC_MODULE\":{\"name\":\"MAC_UL_AMC模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_CRC_MODULE\":{\"name\":\"MAC_UL_CRC模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_PWR_MODULE\":{\"name\":\"MAC_UL_PWR模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_RESALLOC_MODULE\":{\"name\":\"MAC_UL_RESALLOC模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_SCH_MODULE\":{\"name\":\"MAC_UL_SCH模块\",\"desc\":\"应不记录
\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_SRS_MODULE\":{\"name\":\"MAC_UL_SRS模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/MAC_UL_TB_MODULE\":{\"name\":\"MAC_UL_TB模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"
警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/RLC_AM_MODULE\":{\"name\":\"RLC_AM模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/RLC_TM_MODULE\":{\"name\":\"RLC_TM模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/RLC_UM_MODULE\":{\"name\":\"RLC_UM模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/YS_CFG_MODULE\":{\"name\":\"YS_CFG模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/YS_DL_MDOULE\":{\"name\":\"YS_DL模块\",\"desc\":\"
应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"},\"/gnb-du:GNB-DU/DU_ZLOG_CONFIG/ZLOG_MODULE_TYPE/YS_UL_MODULE\":{\"name\":\"YS_UL模块\",\"desc\":\"应不记录\",\"range\":{\"0\":\"不记录\",\"1\":\"致命\",\"2\":\"错误\",\"3\":\"警告\",\"4\":\"调测\",\"5\":\"信息\",\"6\":\"记录\"},\"val\":\"2\"}},\"312\":{\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/COMMON\":{\"name\":\"COMMON模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调
测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/EGTPU_L_RX_C\":{\"name\":\"EGTPU_L_RX_C模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"
信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/EGTPU_L_TX_C\":{\"name\":\"EGTPU_L_TX_C模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/EGTPU_U_RX_C\":{\"name\":\"EGTPU_U_RX_C模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/EGTPU_U_TX_C\":{\"name\":\"EGTPU_U_TX_C模块日
志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/PDCP_RX_CTRL\":{\"name\":\"PDCP_RX_CTRL模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/PDCP_TX_CTRL\":{\"name\":\"PDCP_TX_CTRL模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/SDAP_RX_CTRL\":{\"name\":\"SDAP_RX_CTRL模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"},\"/gnb-cu-log:GNB-CU-LOG/LOGGING_CONFIG/GNB_LOG_LEVEL_CONFIG/SDAP_TX_CTRL\":{\"name\":\"SDAP_TX_CTRL模块日志记录等级\",\"desc\":\"应为信息级别\",\"range\":{\"INFO\":\"信息\",\"TRACE\":\"调测\"},\"val\":\"WARN\"}},\"320\":{\"/du-cell:DU-CELL/PRU_CONFIG/NR_CELL_PA_CHANNEL\":{\"name\":\"通道配置开关\",\"desc\":\"应开启\",\"range\":{\"0\":\"关闭\",\"1\":\"开启\"},\"val\":\"0\"}}}","code":0}
map[int]map[string]XpathDescInfo //k:风险检查规则枚举ID
map[string]XpathDescInfo //k:xpath,v:配置相关信息
type XpathDescInfo struct {
Name string `json:"name"` //配置名称
Desc string `json:"desc"`//配置风险描述
Range map[string]string `json:"range"` //如果不为空则为下拉框,k:真实值,b:枚举值
Value string `json:"val"` //当前配置值
}

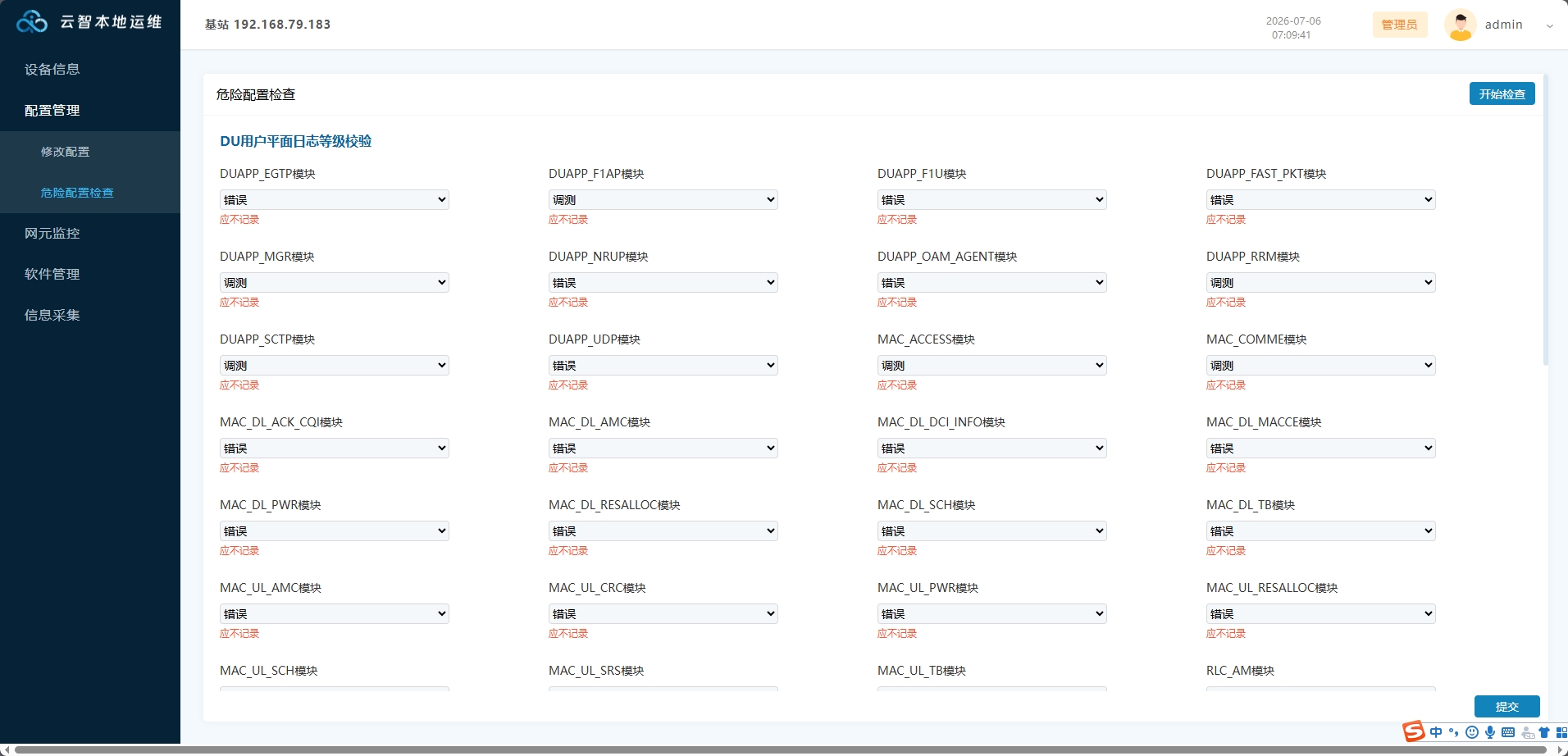

如图网管支持最新接口

LMT 完成编码并自测成功，待合入3.3.1_Pre1T1版本测试回归

331pre1T6基站版本，网管版本242pre3t2
